Get Output File

Updated 11 months ago ​by nussi


In order to get information for output file of a single queued job, you can consume the endpoint presented in this article. In order to consume it, you must:

  • Be authenticated user

For information on how you can authenticate, see: Authentication

As soon as you do authentication and receive a valid token, it needs to be passed on the call for receiving a single queued job information.

  • Have valid ID of an existing queued job

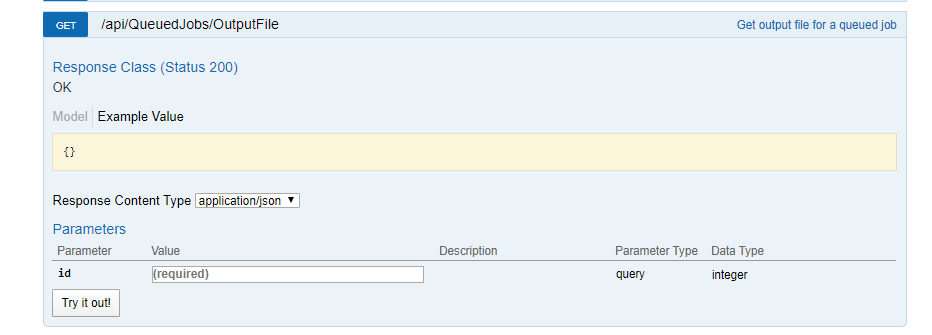

Example for such endpoint for TT server is:{id}

For your server endpoint will be:



  • Method Type: HttpGet
  • Authorization: Use Bearer Token + token received from token authentication
  • Header info: Content-Type: application/json
  • Parameters: ID of the existing queued job


Data Type


Is Required



ID of existing queued job




  • If user is authenticated and provides a valid ID of job, then response will be Status Code 200 => OK and encoded array of bytes, which represent the file content.

    That response content should be decoded from base-64 and array of bytes can be used to save and open the file.
    Name of the file and its extension are stored in the content header as ContentDisposition item

  • If user is not authenticated, then response will be Status Code 401 => Not Valid Token
  • On server response => Status Code 500 => Internal Server Error

Demo in c#

static async Task Main(string[] args)
await GetOutputFile();

Console.WriteLine("Output file successfully downloaded!");

static async Task GetOutputFile()

// Valid ID of a queued job must be provided here
int jobID = 28142;

// URL for downloading output file of a queued job
string url = $"http://localhost:64158/api/QueuedJobs/OutputFile?id={jobID}";

// Valid token must be provided here
string token = "test token";

using (HttpClient client = new HttpClient())
client.DefaultRequestHeaders.Authorization =
new AuthenticationHeaderValue("Bearer", token);
HttpResponseMessage responseMessage = await client.GetAsync(url);

var content = responseMessage.Content

var contentInBytes = Convert.FromBase64String(content);

System.IO.File.WriteAllBytes($@"C:\\Data\\TestRuns\\{responseMessage.Content.Headers.ContentDisposition.FileName}", contentInBytes);
